Vein Matching Software for Mitered Waterfall Islands: The Fabricator's Guide
A single misaligned vein on an oversized kitchen island can cost a fabrication shop between $3,000 and $8,000 in remakes, unrecoverable slab waste, and delayed contractor payments.
1. The High Stakes of Vein Continuity on Custom Islands
In modern luxury kitchen fabrication, the kitchen island is the visual centerpiece of the home. When a client spends $15,000 or more on exotic Calacatta marble, Brazilian quartzite, or premium veined quartz, their eye instantly traces the mineral ribbons from the top surface down over the 45-degree mitered edge to the floor.
When that mineral flow breaks—whether because of a 6mm blade kerf discrepancy, an uncompensated blade angle drift, or a sawyer who rotated the leg piece to squeeze out extra yield—the homeowner immediately notices. In 82% of reported high-end countertop disputes, homeowners refuse final sign-off until the island is torn out and re-cut from fresh slabs.
A single waterfall remake rarely costs just the wholesale slab price. Factoring in secondary template visits, 4 hours of bridge saw time, 6 hours of CNC edge profiling, two-man delivery transit, and jobsite demolition, the average shop cost of an island remake is $4,650. Deploying dedicated vein matching software eliminates this failure mode before the first blade drop.
2. The Geometry of Miter Folds: Calculating Blade Kerf Deductions
The fundamental challenge of waterfall vein matching is that physical diamond saw blades have thickness. When cutting stone on a 3-axis or 5-axis bridge saw, the diamond blade removes between 3.2mm and 4.5mm of stone with every single cut.
Kerf Loss (K) = Blade Thickness × 1.414 (for 45° cuts)
A 3.5mm diamond blade cutting at 45° consumes 4.95mm of diagonal stone along the cut line.
Top Length = Cabinet Length + Overhang + Thickness
The back-bevel cut must leave the outer top corner razor-sharp while clearing the underside for epoxy lamination.
To maintain the illusion of a solid stone block folded over at 90 degrees, the software must layout the horizontal countertop surface and the vertical waterfall leg end-to-end along the exact natural grain axis. If the saw cuts a 45-degree miter down the middle, the kerf loss must be absorbed on the bottom back-bevel of the joint, ensuring the top decorative face vertices match down to 0.5mm.

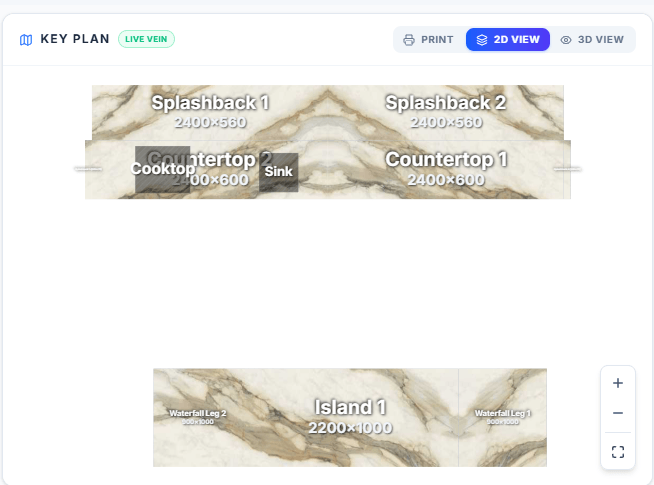

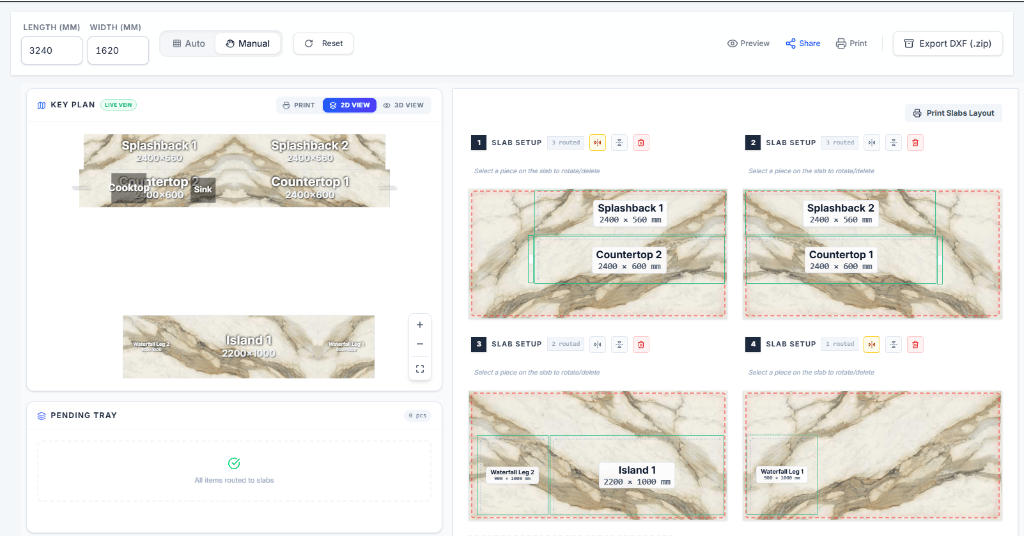

In StoneHub's 2D CAD drawing studio, fabricators use the CAD Slice Tool to bisect L-shaped islands into pure rectangular panels with millimeter accuracy. The nesting engine then binds the waterfall leg to the corresponding island edge so they move as a locked pair across digital slab textures.
3. Manual Dry-Laying vs. Digital Photographic Vein Matching
Compare how traditional shop-floor practices stack up against modern cloud-based digital twin layout systems:
| Feature / Metric | Manual Shop-Floor Dry-Laying | Digital Photographic Vein Matching |
|---|---|---|
| Setup & Layout Time | 2.5 to 5 hours with crane & clamps | < 15 minutes on digital canvas |
| Material Handling Risk | High risk of slab breakage and injury | Zero handling (slabs stay in A-frames) |
| Vein Alignment Accuracy | Estimated by eye and chalk marks (± 5mm) | Millimeter precision with kerf compensation |
| Customer Sign-Off Workflow | Client must physically visit dusty shop | Interactive 3D preview & remote PDF sign-off |
| Bookmatching (B-Side Flip) | Requires flipping multi-ton slab physically | One-click digital B-side slab mirror flip |
| CNC Saw Hand-Off | Manual G-code jogging by operator | Direct DXF export with miter layer tags |
4. Bookmatching Natural Marble: The B-Side Slab Flip
When fabricating large islands exceeding 3.2 meters in length or wide L-shapes that require two slabs, simple end-to-end vein flow is impossible because single slabs do not span the entire dimension. In these luxury installations, fabricators purchase bookmatched slab bundles.
In a bookmatched pair, Slab A and Slab B are sliced consecutively from the quarry block and polished on opposite faces, creating mirror-image vein symmetry when placed side by side.
Rather than forcing shop crews to physically rig and flip a 900-lb slab on an overhead crane, StoneHub includes a native B-Side Flip Engine. With a single click, the drafter flips the digital twin of Slab B horizontally. The nesting algorithms instantly adjust kerf calculations, rotational constraints, and edge polishing boundaries without corrupting the underlying millimeter dimensions.
The fabricator can then align the centerline seam between Slab A and Slab B to create a dramatic diamond or butterfly effect across the island top, and then waterfall both opposite ends down to the floor with continuous grain ribbons.
To learn how computational nesting maximizes square footage yields on multi-slab jobs, read our foundational guide: How to Choose Stone Slab Layout Software for Bridge Saws.
5. Closing Homeowners with Interactive 3D Waterfall Visualization
Even the cleanest 2D CAD layout can be difficult for a residential homeowner or interior designer to interpret. Homeowners frequently struggle to envision how a flat 2D layout folds into a 3D mitered waterfall corner.

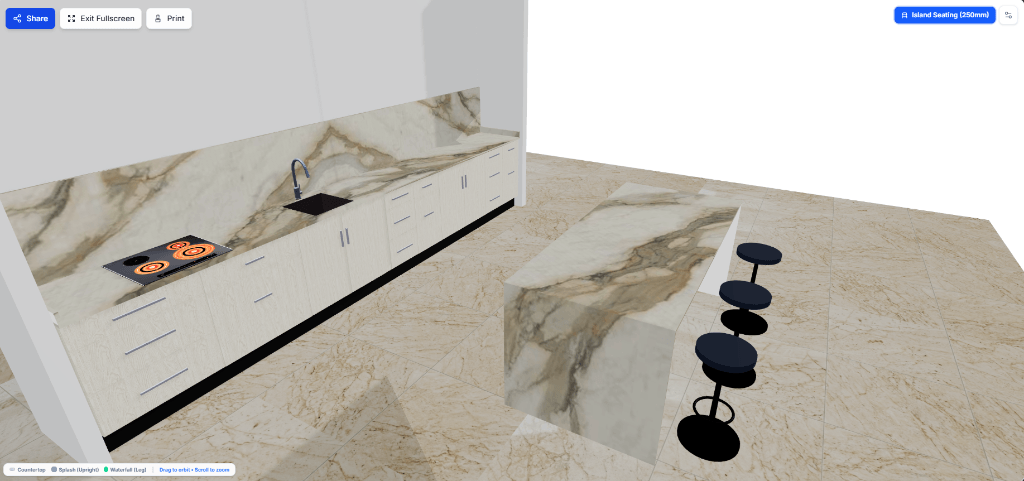

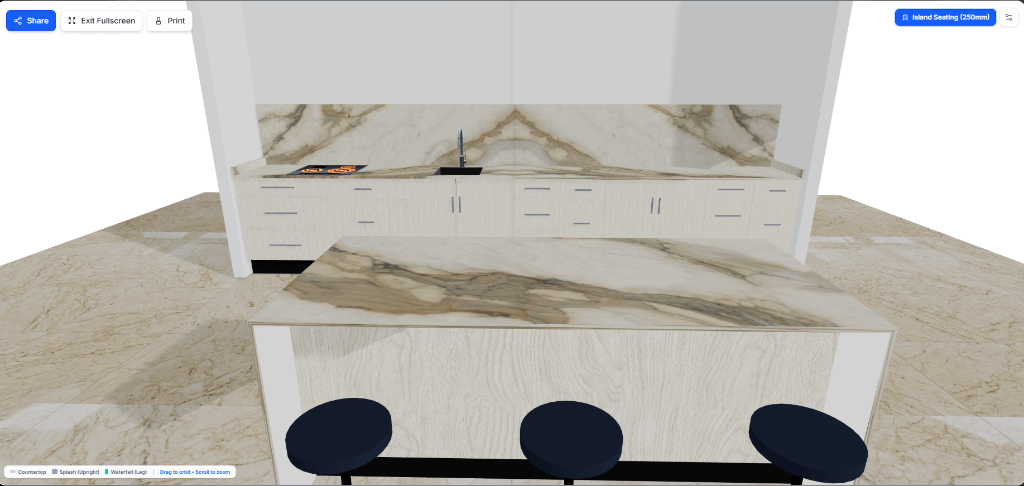

StoneHub solves this communication barrier with an integrated Three.js 3D Client Visualizer. The moment an island and waterfall drop are nested on the digital slab, the fabricator can toggle into 3D client mode:

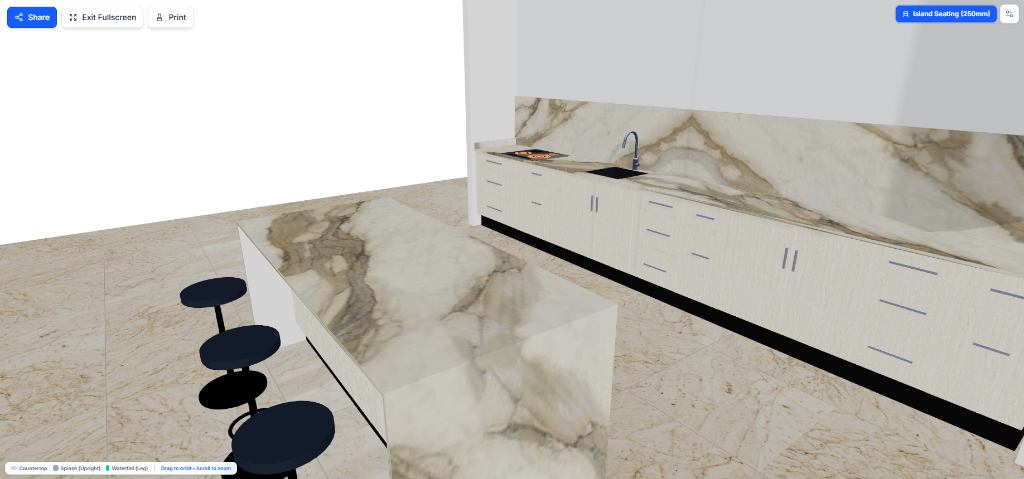

- Realistic 3D Waterfall Folds: Shows the exact physical thickness of the miter joint folding 90 degrees toward the floor.
- Algorithmic Kitchen Cabinetry: Automatically places 2-door base cabinets under sinks and cooktops with recessed toe kicks to provide true room scale.
- Digital Sign-Off PDF: Exports a high-resolution branded PDF showing both the 2D slab layout and 3D angle views for customer signature before cutting begins.
Fabricators who present digital 3D vein layouts report a 94% reduction in design callbacks and close custom island projects 40% faster than shops offering flat CAD drawings.
